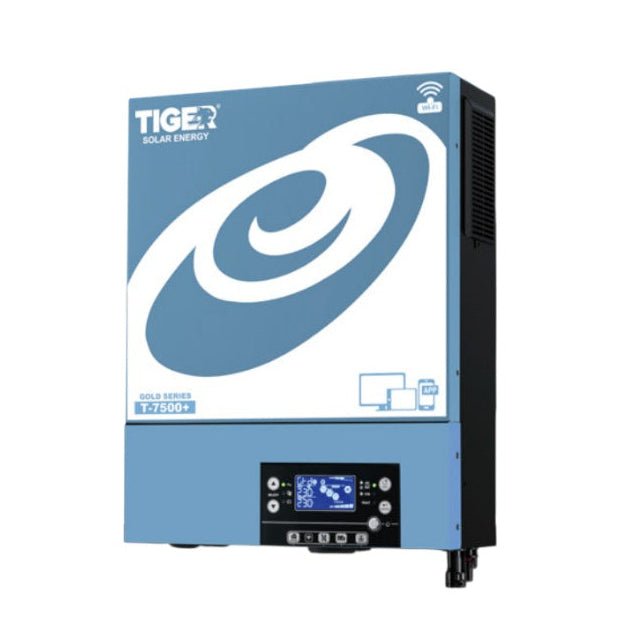

Tiger T-7500 Gold Series 4.5kW Hybrid Solar Inverter With 7500W PV | Dual Input | Built-in WiFi |3 Outputs | BMS Port
$ 96.29
Description Equipped with advanced MPPT technology, the T-7500 maximizes solar energy conversion and enhances overall system efficiency. Its pure sine wave output guarantees clean and stable power for sensitive electronics, while smart protection features safeguard against overloads, short circuits, and voltage fluctuations. Key Features: Dual inputs and three outputs for smart energy management Maximum PV input current 40A Built-in Wi-Fi for mobile monitoring and OTA firmware Supports USB (Type-A or Type-C) On-the-Go function for exporting log and firmware upgrade Reserved communication port for BMS Built-in external CT sensor to guarantee 100% self-consumption Battery independent design Built-in 120A MPPT solar charger Built-in anti-dust kit Specification Details Model Tiger Gold Series T-7500 Rated Power 4500VA / 4500W Input Voltage 230 VAC Selectable Voltage Range 170–280 VAC (For Personal Computers) / 90–280 VAC (For Home Appliances) Frequency Range 50 Hz / 60 Hz (Auto Sensing) AC Voltage Regulation (Batt. Mode) 230VAC ± 5% Surge Power 9000VA Efficiency 93% Transfer Time 10 ms (For PCs) / 20 ms (For Home Appliances) Waveform Pure Sine Wave Battery Voltage 24 VDC Floating Charge Voltage 27 VDC Overcharge Protection 33 VDC Solar Charger Type MPPT Maximum PV Array Power 7500W MPP Range @ Operating Voltage 60 ~ 450 VDC Maximum PV Array Open Circuit Voltage 500 VDC Maximum PV Input Current 40A Maximum Solar Charge Current 120A Maximum AC Charge Current 120A Maximum Total Charge Current 120A Dimension (D × W × H) 131 × 336 × 435.5 mm Net Weight 11.8 kg Communication Interface USB / RS232 / RS485 / WiFi / Dry-contact Humidity 5% to 95% RH (Non-condensing) Operating Temperature -10°C to 50°C Storage Temperature -15°C to 60°C
